Water Meter

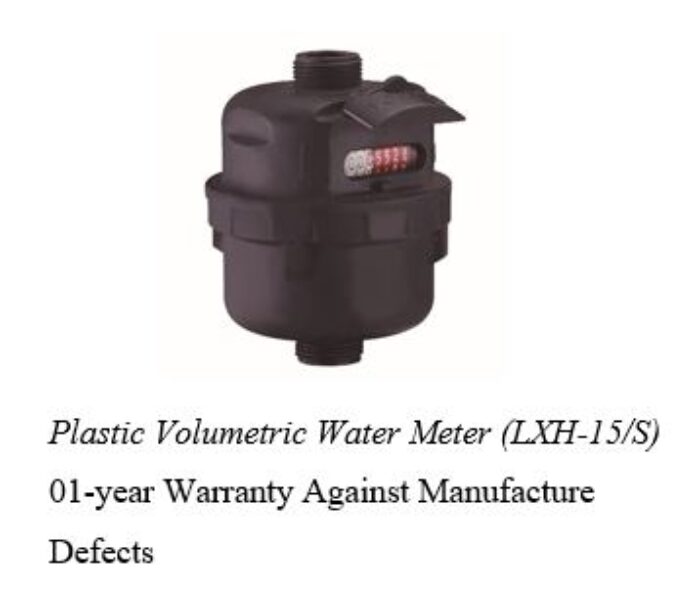

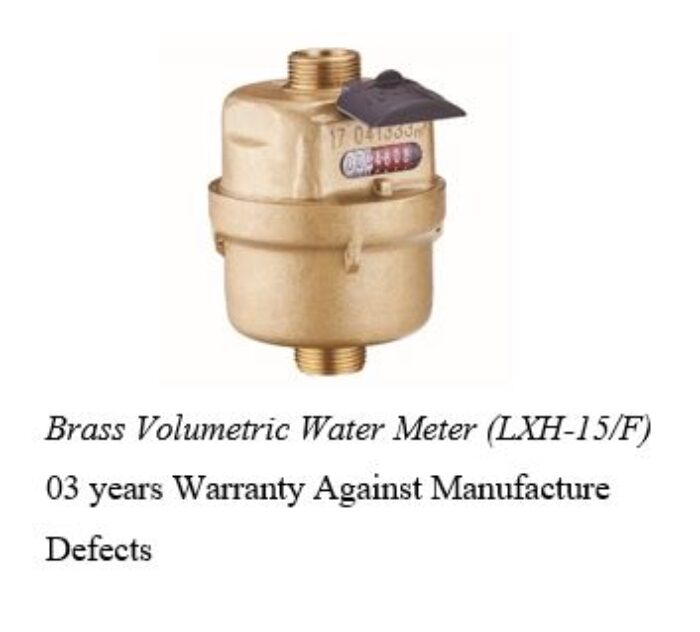

A volumetric meter is a device installed in a closed conduit that measures water using chambers of known volume. Water flow drives a piston, and each rotation discharges a fixed quantity. The number of piston rotations is recorded through gears, allowing the total volume of water passing through to be accurately measured.

Usage;

  • Measure water consumption accurately
  • Enable fair billing for users
  • Detect leaks and wastage
  • Monitor and control water usage
  • Support water conservation
  • Used in residential, commercial, and industrial systems
  • Help manage municipal water supply efficiently

YUNIO branded water meters are built using advanced engineering and comply with international standards such as ISO and OIML, ensuring high accuracy, durability, and reliability. The brand offers a wide range of meters—including mechanical and volumetric based systems—used globally for efficient water management.

Working Condition;

  • Water Temperature – ≤ 300C
  • Water Pressure – ≤ 1MPa (PN: 1.6MPa / 16bar)
  • ∆P ≤ 0.1MPa (Class C)
  • ∆P ≤ 0.063MPa (R 160)

Accuracy;

  • From minimum flow rate (Q1) inclusive to transitional flow rate (Q2) exclusive: ± 5%
  • From transitional flow rate (Q2) inclusive to overload flow rate (Q4) exclusive: ± 2%

Specification; Ok

Dimension;  Ok
